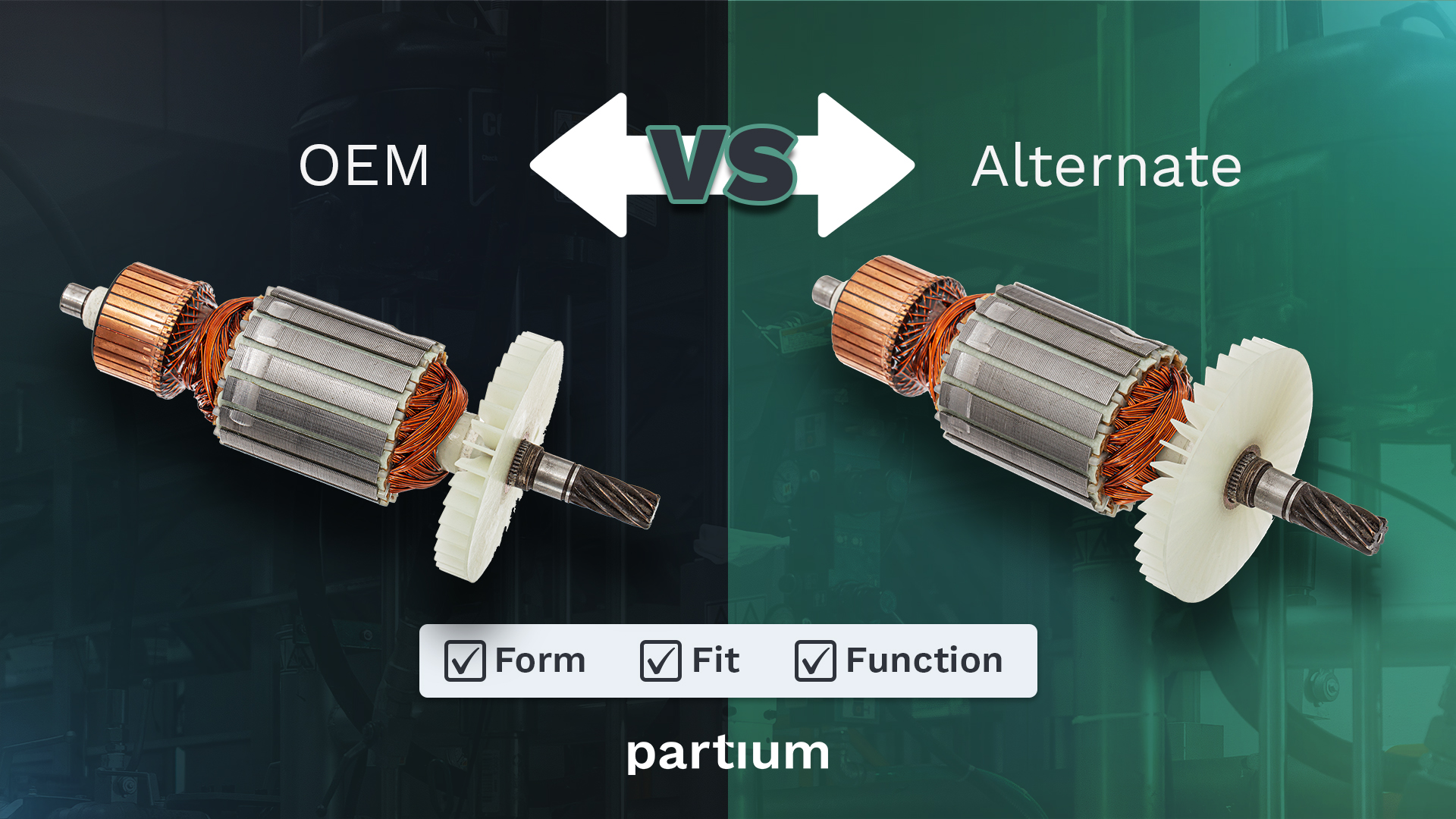

FFF—Form, Fit, Function: The Discipline Behind Approved Alternates

Quick Summary

• FFF (Form, Fit, Function) is the engineering discipline that turns a substitute part from a guess into an auditable decision.
• “Form” = physical characteristics; “Fit” = interfaces/mounting; “Function” = required performance. All three must be addressed to approve an alternate.

• The winning pattern: keep FFF facts in the workflow (tech tablet, requisition, approval)—not just in a spreadsheet.

• Standardize your data fields, approval matrix, and evidence so alternates become SOP (Standard Operating Procedure), not one-off debates.

• Results: fewer mis-orders, fewer rush buys, better first-attempt fits, and reduced OEM dependency.

Table of Contents

• What FFF Really Means (and why it’s not optional)
• How FFF Becomes an Operational Discipline
• A Practical FFF Data Model (fields you actually need)
• Approval Workflow: From request to “approved alternate”
• Risk Controls, Edge Cases, and Common Pitfalls
• Putting FFF in the Workflow (ERP/EAM + mobile)
• Actionable Steps You Can Take Now
• KPIs That Prove It’s Working
• Final Thoughts
• Further Reading
• Explore the Parts Intelligence Way

1) What FFF Really Means (and why it’s not optional)

Form covers dimensions, materials, weight, and physical characteristics.
Fit covers interfaces: mounting pattern, connector type, thread/gasket, voltage/current, environmental class.
Function covers performance: flow rate, torque, speed, accuracy, duty cycle, IP/NEMA rating, safety or compliance constraints.

Why it matters: without documented FFF, an “alternate” is a rumor. With FFF, it’s a repeatable, safe choice you can defend to QA, safety, and audit.

2) How FFF Becomes an Operational Discipline

FFF isn’t a PDF on a shared drive. It’s a closed-loop practice:

• Evidence: engineering notes, datasheets, test results, photos.

• Rules: when a deviation is allowed (e.g., material changes but mechanical and performance equivalence proven).

• Approvals: who signs off by risk class.

• Governance: how the decision is recorded, searchable, and reused.

The goal is not to find “a” substitute; it’s to institutionalize the ability to choose the right substitute quickly and safely.

3) A Practical FFF Data Model (fields you actually need)

Capture these in your ERP/EAM or parts master:

For the original part

• LifecycleStatus (Active / NRND / EOL / Obsolete) and StatusDate

• Criticality (A/B/C) and ApplicationNotes

For each approved alternate

• Alt_PartID, Alt_Manufacturer, Alt_Source(s)

• FFF_Summary (1–3 lines: key dimensional/connection/performance proof)

• Deviations (if any) with mitigations (e.g., adapter plate, wiring harness)

• Evidence_Link[] (datasheet, test report, photo)

• Approver, ApprovalRole (Engineering, QA), ApprovalDate

• Constraints (temperature, hazardous area class, regulatory)

• LeadTime and PriceBand (range or supplier-quoted)

• ReplacementType (Interchangeable / Requires Adapter / Functional Equivalent with Limits)

4) Approval Workflow: From request to “approved alternate”

1. Request (tech/planner): proposes an alternate (or system suggests one).

2. Pre-check: FFF facts auto-filled from master data; deviations flagged.

3. Risk class assigned (by asset/part criticality).

4. Approvals routed:

   • Low risk: Planner + Engineering sign-off in one step.

   • Medium risk: Engineering + QA.

   • High risk / safety: Engineering + QA + Compliance; optional test or pilot.

5. Decision recorded with FFF summary, evidence, and approvers.

6. Publish: Alternate visible at point of work (tech tablet, requisition, approval).

7. Feedback: field notes & photos tied back to the decision (validate or adjust).

5) Risk Controls, Edge Cases, and Common Pitfalls

Controls

• Red lines: never relax safety/compliance (ATEX, UL, FDA, railway EN specs, etc.).

• Deviations require mitigations (adapter, wiring change, firmware setting).

• Time-bound approvals if supplier data is incomplete; review in 6–12 months.

Edge cases

• “Close but not quite”: same function, different connector → allow with approved adapter kit.

• “Better-than-OEM”: higher spec is okay if it doesn’t break interfaces or safety.

Pitfalls

• Vague FFF notes (“should fit”); no evidence links.

• Alternates recorded in emails; not visible to the next planner/tech.

• Engineering approvals stored in CAD/PLM only; not surfaced in ERP/EAM.

6) Putting FFF in the Workflow (ERP/EAM + mobile)

Technician view: original part + two approved alternates; short FFF notes, connector/mounting callouts, and a “Use Alternate” button that logs the substitution and alerts the planner.

Requisition/approval view: side-by-side OEM vs Alternate with price/lead time/lifecycle, FFF summary, and required approvals already satisfied.

Governance view: queue to review pending alternates, aging approvals, and parts with high substitution demand but no approved alternate yet.

7) Actionable Steps You Can Take Now

• Start with 200 parts (high use + high criticality).

• Approve 1–2 alternates each with a 3-line FFF summary and evidence links.

• Add “Use Alternate” and photo+note capture to the field app.

• Add an approval guardrail: POs for high-risk parts require alternate check.

• Run a monthly 45-min review: new alternates, expired evidence, high-risk items.

8) KPIs That Prove It’s Working

• % of critical parts with approved alternates (target ↑ over time).

• First-attempt fit rate (should improve).

• Mis-order and return rate (should drop).

• Mean time tech → fix (trend down).

• Rush buys due to no alternate (trend down).

• Use of alternates vs OEM where appropriate (balanced—not reckless).

9) Final Thoughts

Alternates without FFF are guesses. With FFF, they’re decisions you can trust, repeated safely by anyone on the team. Put the facts where decisions happen, document the approval once, and let every future planner and technician benefit from it.
